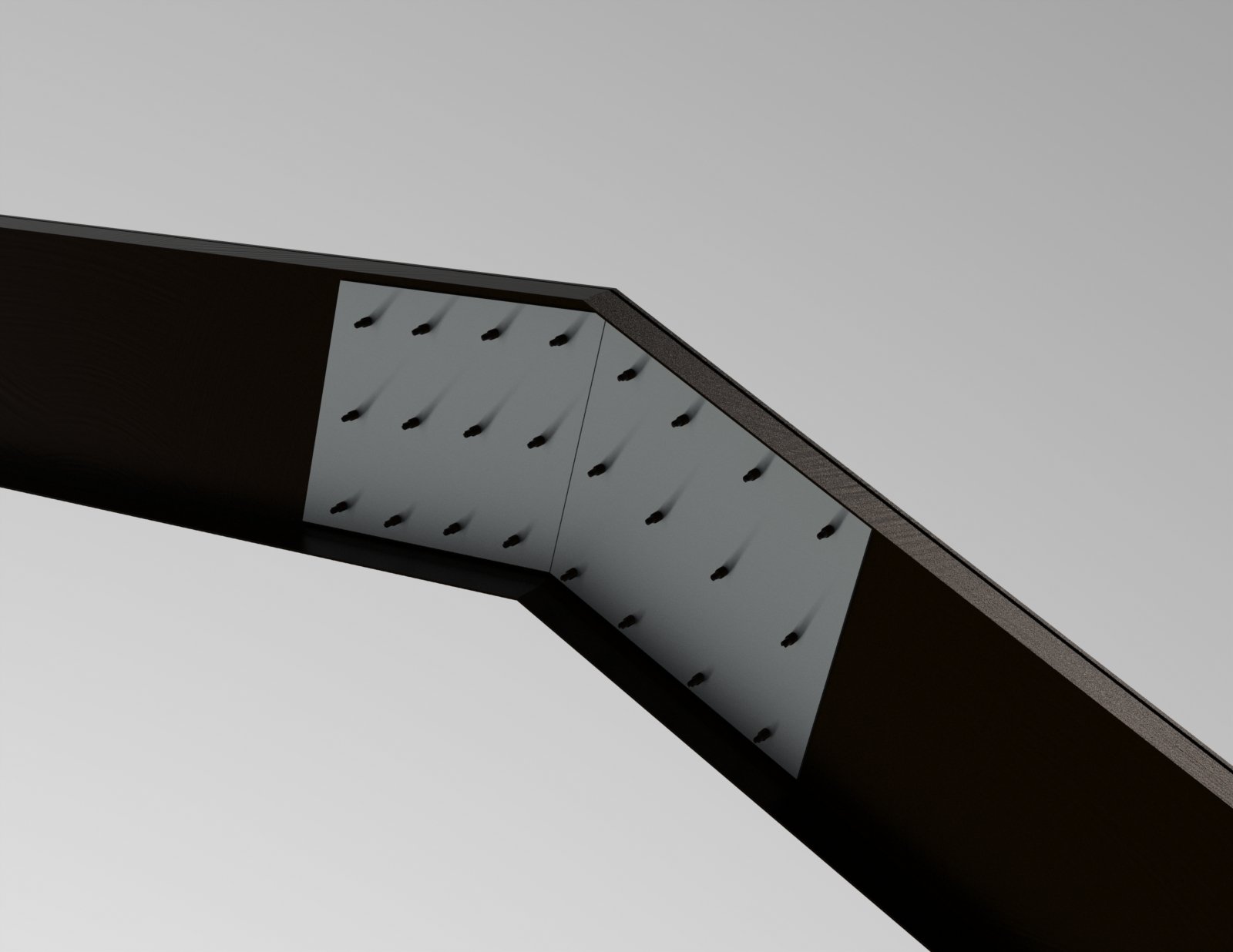

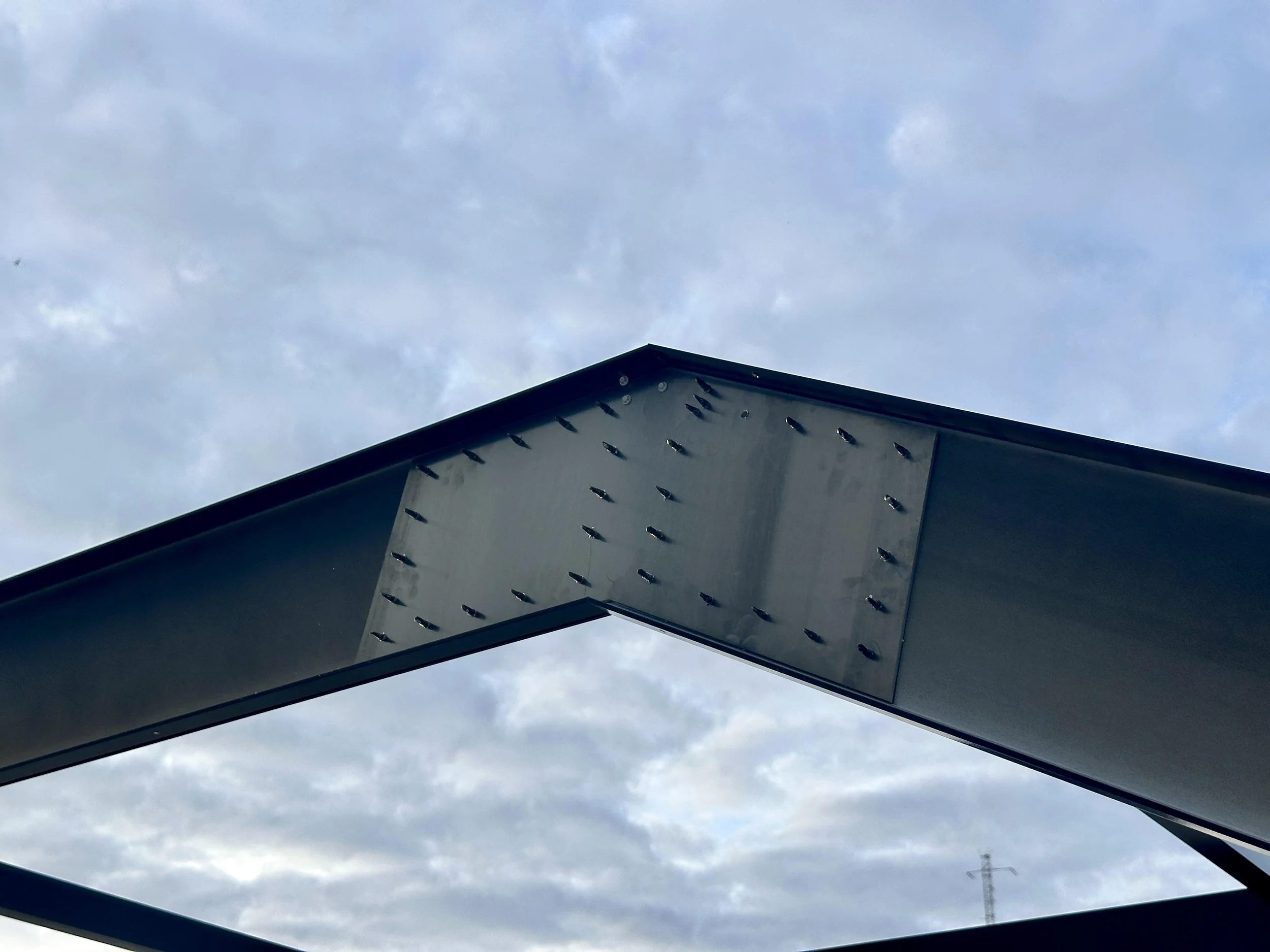

Precision aluminum gusset plate designed for connecting SMB aluminum beams at fixed angles. The standard configuration is 30 degrees, commonly used in mansard roof structures.
These gusset plates are CNC-cut from corrosion-resistant aluminum to ensure consistent fit, proper load distribution, and clean professional installations. They eliminate the need for field-fabricated brackets and provide repeatable results across projects.
For mansard and peak roof applications, custom angles available
Etched centerline
Designed for SMB aluminum beam connections
CNC-cut for accuracy and repeatability
Clean, professional alternative to on-site fabrication
4” - 7” Gusset Plates - 1/8” Thickness
8” - 10” Gusset Plates - 3/16” Thickness
Custom Options Available
Manufactured in Florida for aluminum construction professionals.
